Running Gear for Mitco Single-Shot Survey Instruments

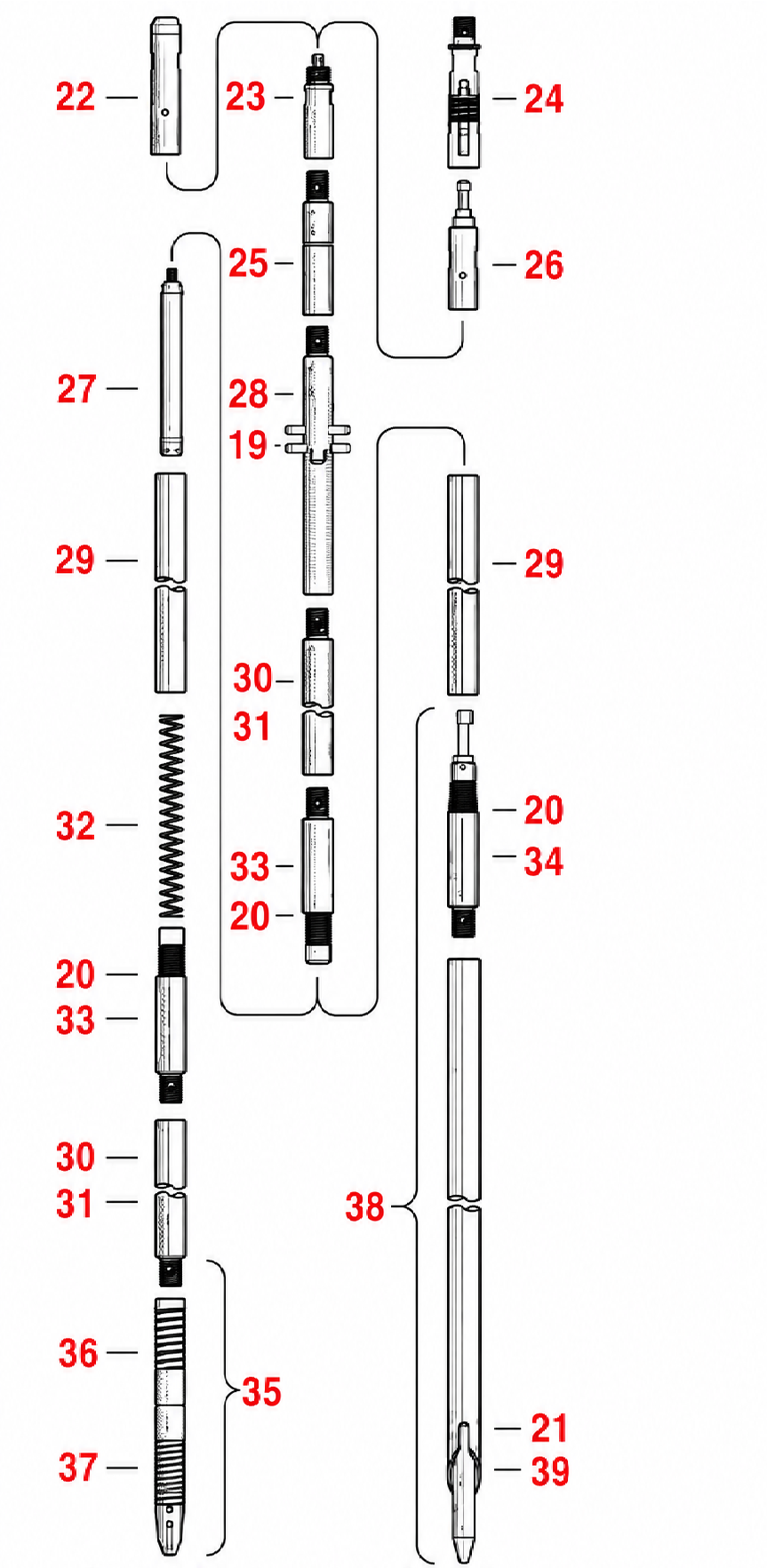

Shown and identified by description and part number are the components for the running gear to use with the MITCO single shot instruments. Both conventional and orienting running gear assemblies are shown. Optional running gear components are shown separately.

The 1 3/8" O.D. running gear is used with the 1 1/16" MITCO single shot instrument and the 1 3/4" O.D. running gear is used with the 1 1/4" O.D. MITCO single shot instrument.

Conventional

Orienting

SINGLE SHOT RUNNING, GEAR PACKAGE

ITEM NO.

DESCRIPTION

1 3/8" DIAMETER 1 1/16"
INST.

1 3/4" DIAMETER 1 1/4" INST.

HIGH TEMP
1 1/16" DIAMETER	1 1/4" DIAMETER

22

ROPE SOCKET

200300

200301

23

WIRELINE SUB

200095

200479

24

OVERSHOT, PAA

200307

-

OVERSHOT, PDD

-

201366

25

SWIVEL ASSY

200309

200310

26

SPEAR POINT, PAA

200302

200303

-

SPEAR POINT, PDD

-

200304

27

INTERNAL SHOCK ASSY

200335

200336

28

STABILIZER BODY

200312

200313

29

PROTECTIVE BARREL

200331

200334

200443

200445

30

SPACER BAR 12" (ALUMINUM)

200314

200315

-

SPACER BAR 24" (ALUMINUM)

200316

200317

-

SPACER BAR 36" (ALUMINUM)

200318

200319

-

SPACER BAR 60" (ALUMINUM)

200321

200322

31

SINKER BAR, 36" (BRASS)

200324

200325

-

SINKER BAR, 48" (BRASS)

200326

200327

-

SINKER BAR, 60" (BRASS)

200328

200329

32

BARREL SPRING

-

200480

33

BULL PLUG

200341

200330

200439

200441

34

BULL PLUG ASSY, ORIENTING

200348

200349

200485

200486

35

BOTTOM LANDING SHOCK ASSY

200337

200339

36

BOTTOM LANDING EXT. SPTING

102131

102165

37

BOTTOM LANDING INT. SPRING

102132

102166

38

MULESHOE ASSY, 60"

200342

200343

-

MULESHOE ASSY, 120"

200344

200345

200483

-

MULESHOE ASSY, 140"

-

200346

-

200484

-

MULESHOE ASSY, 168"

-

200347

-

39

CAM, MULESHOE

200481

200482

200481

200482
